Description
NEW PERFORMANCE BUNDLES!
HILLY TERRAIN Bundle

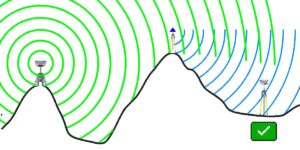

Work over hills and around other obstructions with our Hilly Terrain Bundle. Radio wave propagation does not peform well in hilly terrain which can make RTK operation between hills and valleys impossible. Our Hilly Terrain bundle offers two options to overcome this problem:
- Cellular Communication
- Radio Repeater
Cellular Communication is the best option if you have cell service in the area you are working. If cell service is poor, or unknown, then our Radio Repeater will help you get the work done.
LONGE RANGE Bundle

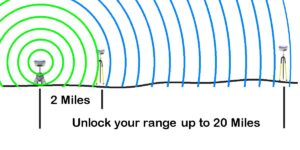

Work up to 20 Miles* from the Base without moving it with our Longe Range Bundle. TIME IS MONEY and leap-frogging your Base to cover long distances takes a lot of time. Our Long Range bundle un-locks the limited radio range (approx 1.5 mile Rad.) to up to 20 Miles with two options:
- Cellular Communication
- High Power UHF Radio
Cellular Communication is the best option if you have cell service in the area you are working. If cell service is poor, or unknown, then our High Power UHF Radio will help you get the work done.
* Performance and productivity are inversely to Base-Rover distance and directly related to Precision/Accuracy.
BRx7 SPECIFICATIONS
- Multi-Frequency, Multi-Constellation GNSS
- Positioning Modes: RTK, L-band, DGNSS, SBAS, Autonomous
- Channels: 800+
- RTK Formats: RTCM 2.1, RTCM 2.3, RTCM3.0, RTCM3.1, RTCM3.2 including MSM
- L-Band Formats: Atlas H100, Atlas H30, Atlas H10
- Update Rate/ Recording Interval: Selectable from 1, 2, 4, 5, 10 Hz (20 Hz available)
- Horizontal / Vertical RTK (RMS): 8 mm + 1 ppm / 15 mm + 1 ppm
- Static Performance (long occupation): 5 mm + 0.1 ppm / 3.5 mm + 0.4 ppm
- SBAS (WAAS): 1 0.3 m 0.6 m Autonomous, no SA:1 1.2 m 2.4 m
- GPS: L1CA, L1P, L2P, L2C, L5
- GLONASS: G1, G2, G3, P1, P2
- BeiDou: B1i, B2i, B3i, B10c, B2A, B2B
- QZSS: L1CA, L2C, L5, 1C, LEX
- Galileo: E1BC, E5a, E5b, E6BC, ALTBOC
- SBAS: MSAS, WAAS, EGNOS, GAGAN
- IRNSS: L5
- Atlas
- 5-pin Lemo, external power & and radio 7-pin Lemo, USB OTG connection & serial port
- TNC antenna connector for internal radio
- WebUI: Software upgrade, status, settings and download via browser on Wi-Fi
Outputs: RTCM2.1, RTCM2.3, RTCM3.0, RTCM3.1, RTCM3.2 including MSM
Radio Frequency Range (Dual Band):
- 410 – 470 MHz Channel Spacing: 12.5 KHz / 25 KHz
-
902.4 – 928MHz LICENSE FREE BAND!
-
Emitting Power: 0.5 / 1 W Operating Range: 1-2 Miles (depending on terrain and interference)
- EXTEND your Base – Rover working range with Listen – Listen Click here for more info
Wireless Module Wi-Fi: 802.11 b/g, Integrated module with antenna.
Bluetooth: 2.1 + EDR, / 4.0 LE
- LTE FDD, LTE TDD, UMTS, GSM
- User accessible SIM card slot
- Run Time: Base approximately 5-7hrs*
- Run Time: Rover approximately 6-8hrs *
- Hot-swappable 7.2 V lithium (2 per kit) Battery
- External power input: 9 to 28 VDC .
- Charge Time: Typically 7 hours
- * Run time varies with configuration and conditions
- Internal 8 GB, accessible through USB and Wi-Fi.
- Memory card: Micro SD card slot, up to 32 GB.
- Operating Temperature: -30°C to 65°C (-22°F to 149°F)
- Storage Temperature: -40°C to 80°C (-40°F to 176°F)
- Waterproof/Dustproof: IP67
- Shock Resistance: MIL-STD-810G, method 516.6: 2 m pole drop on concrete floor 1 m free drop on hardwood floor
- Vibration: MIL-STD-810G, method 514.6E-I
- Humidity: Up to 100%
- Inflammability: UL recognized, 94HB Flame Class Rating (3)
- Chemical Resistance: Cleaning agents, soapy water, industrial alcohol, water vapor, solar radiation (UV)
Mechanical Size: 156mm x 76mm (6.14″ x 2.99″)
Weight: <1.3 kgs (<2.87 lbs)
Mounting: 5/8”x11 female
GNSS Antenna Phase Center Offset: GPS L1 and L2 offset below 2.5 mm
